About the Project
This is a project to design a chess set, I applied the butterfly theme, finished all the design process in Rhino, and printed some of the test objects in a 3D printer.
Pieces in the set include (i) Pawn (ii) Bishop (iii) Rook (iv)Knight (v) Queen (vi) King
Pieces in the set include (i) Pawn (ii) Bishop (iii) Rook (iv)Knight (v) Queen (vi) King
Time of Completed
March 2024
Tools

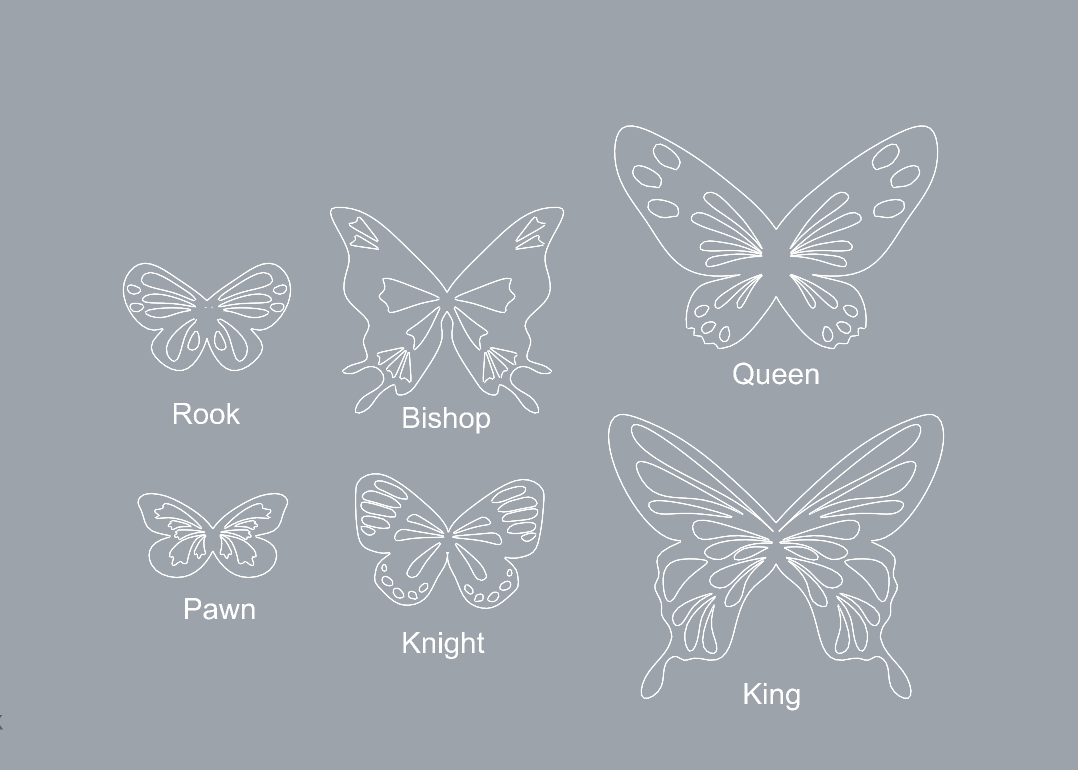

Adobe Illustrator (shapes design)

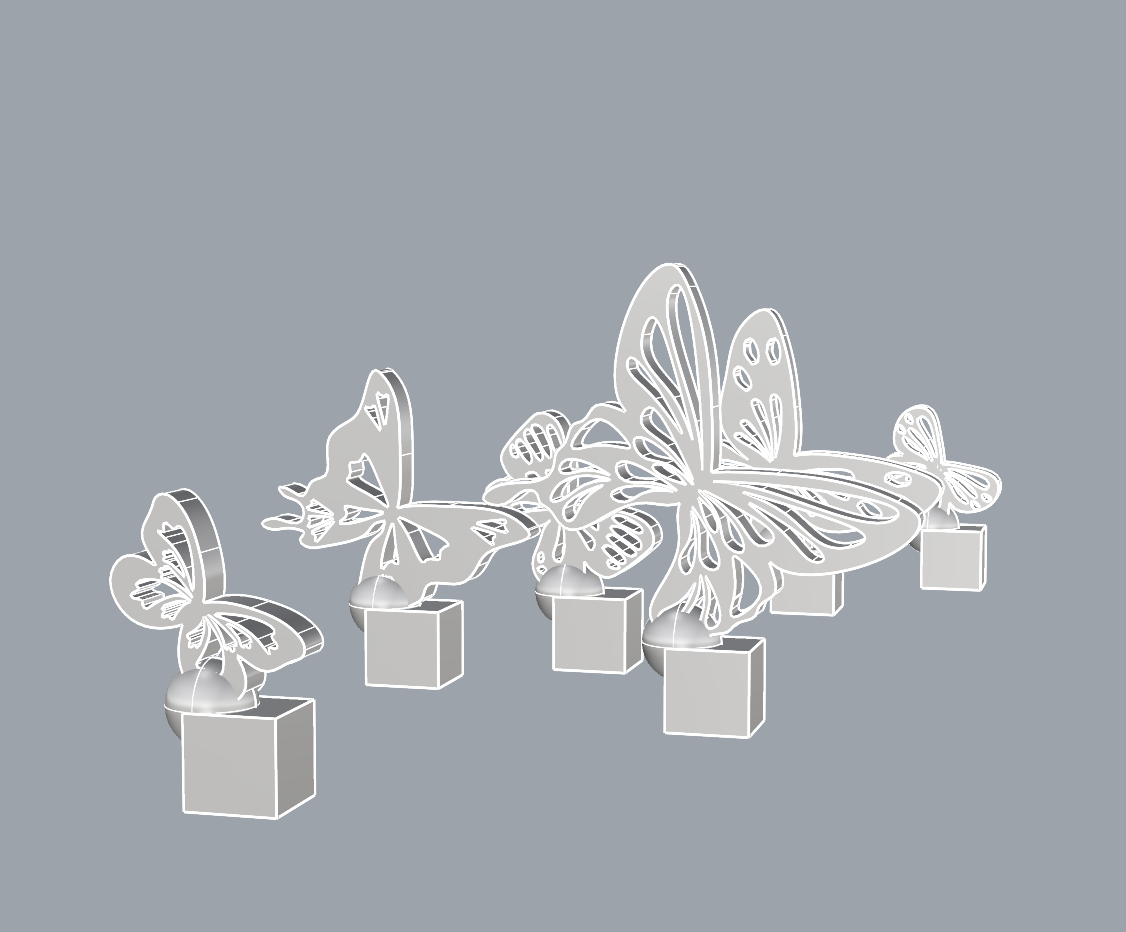

Rhino 8 (3D modeling)
3D printer （mockup printing)
Rhino 8 (3D modeling)
3D printer （mockup printing)

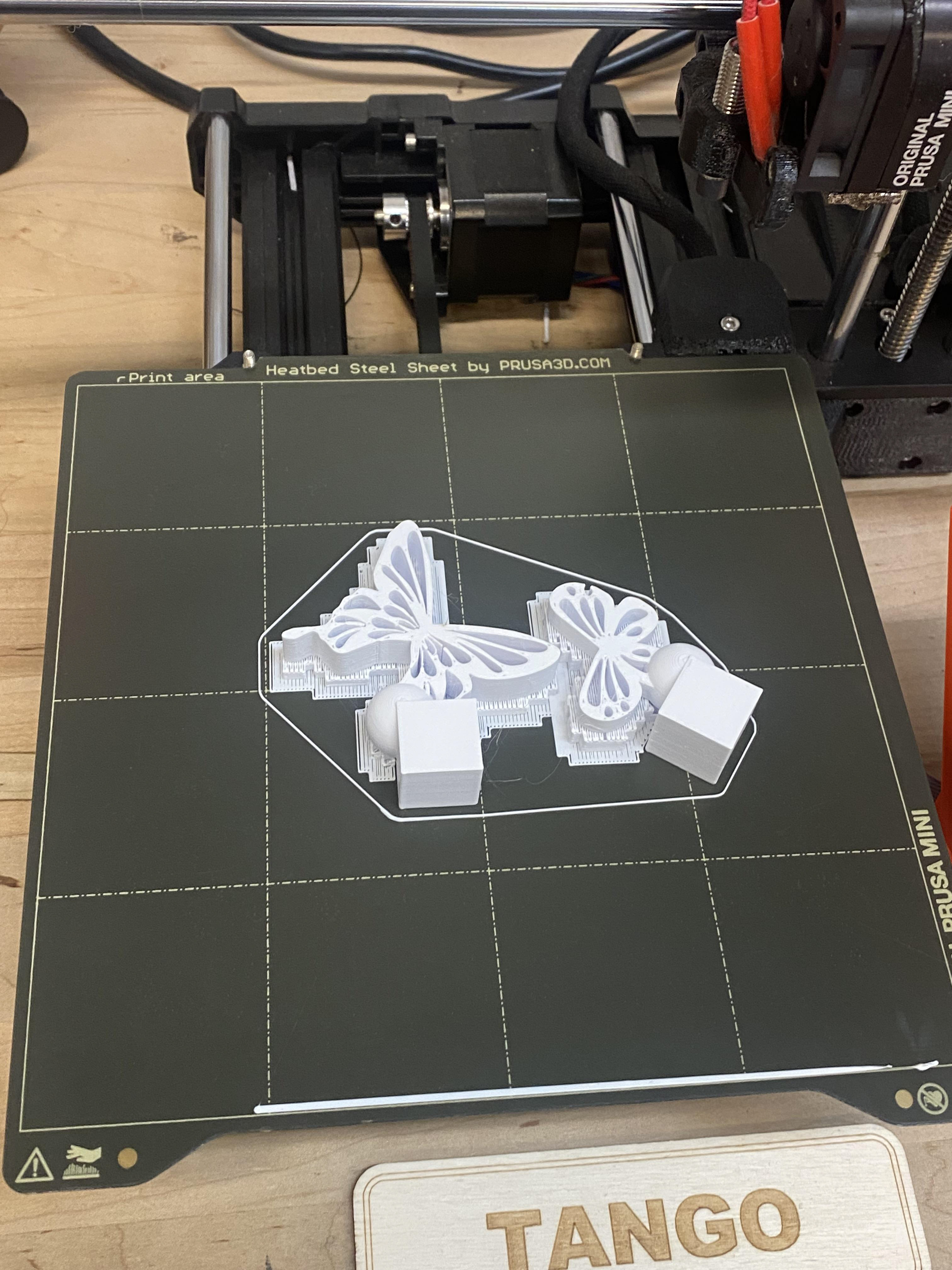

3D Printing Mockup

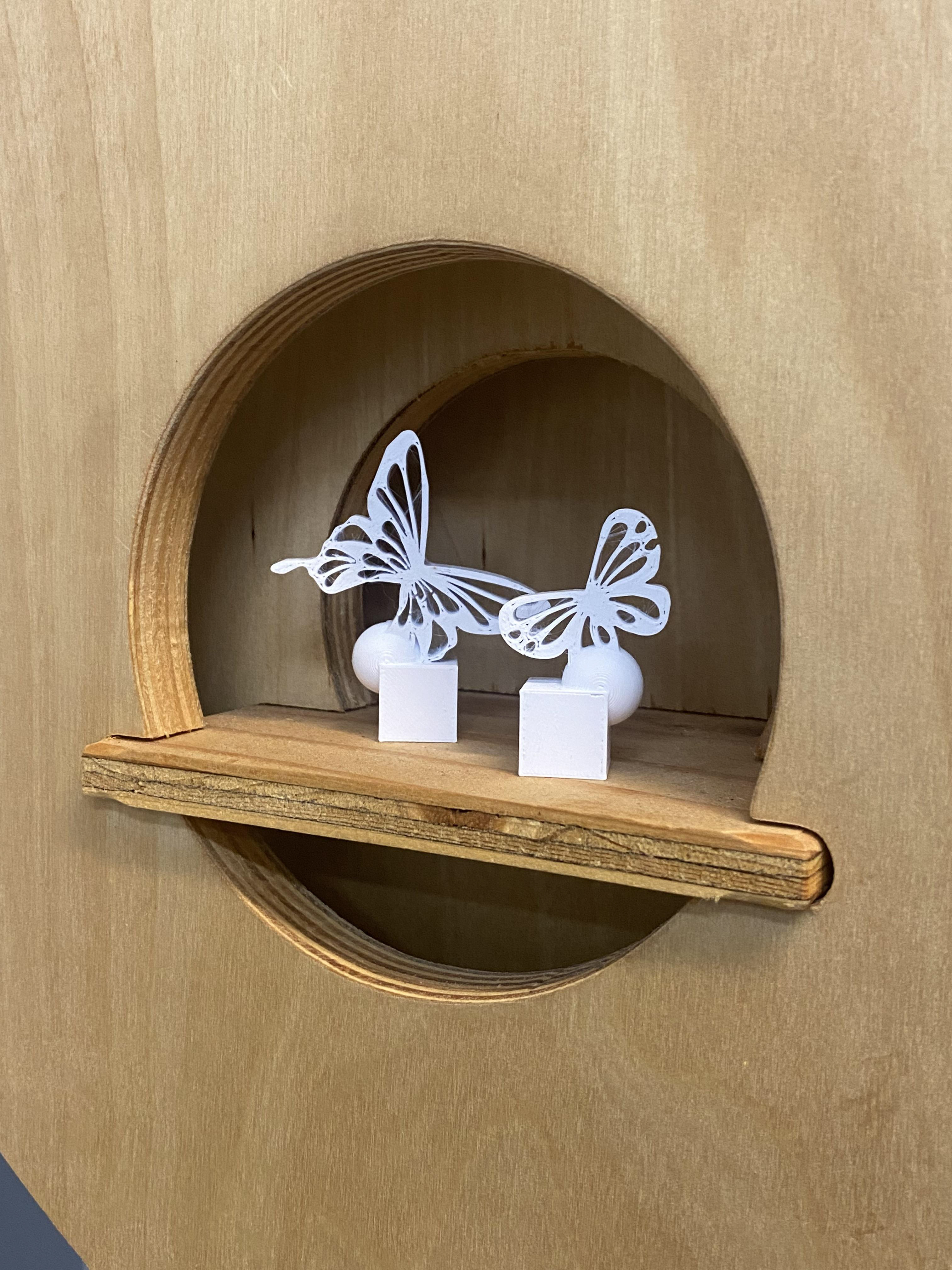

The test objects were successfully printed out by 3D printing, but due to the limited materials, accuracy of printers, and other technical issues, the mockups are not perfect.
